Feixiang feitian Trapeze Metal Roll Forming Machine

FOB Reference Price:Get Latest Price
US $7,800-15,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze Steel
Use:
Roof
Production Capacity:
8-12m/min
Place of Origin:
Hebei, China (Mainland)
Brand Name:
RFM
Model Number:
feitian
Power(W):
4+4KW
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
6500*1300*1100
Weight:
5 Tons
Certification:
CE/ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Hebei Feixiang Roll Forming Machinery
Color:
Client's Request
Raw material:
Galvanized Sheet
Control system:
PLC
Usage:
Building
Roller material:
45# Steel Plated
Shaft material:
45# Steel Outer Diameter: 75mm
Cutting blade material:
Cr12 Mould Steel
speed:
8-12m/min
weight:
5Tons
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaging Details: fit for ocean ship
Delivery Detail: within 45 working days
Port
Tianjin
Lead Time :
45 working days

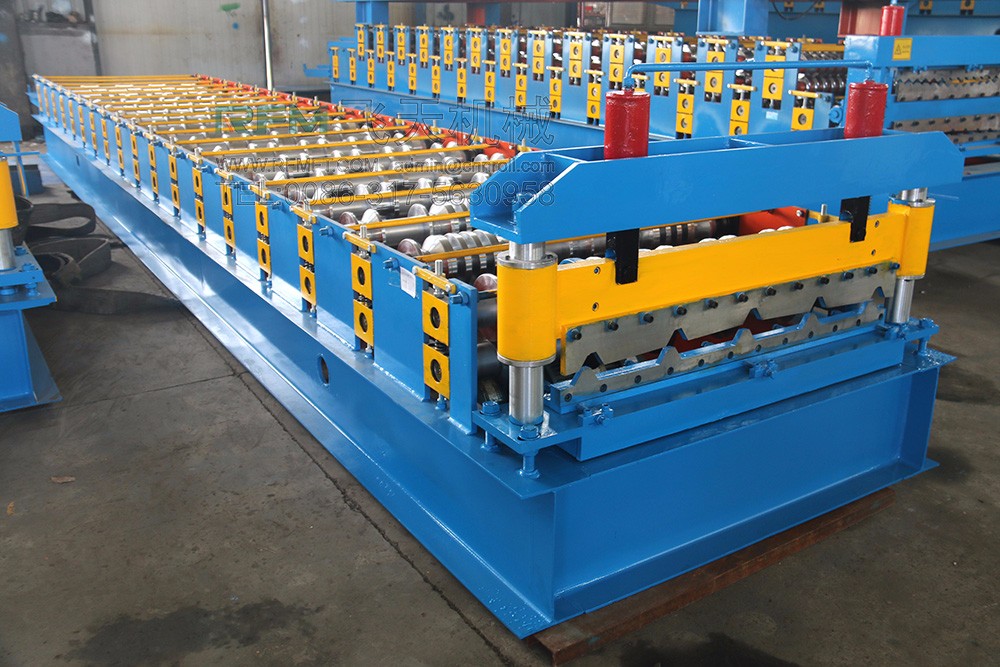

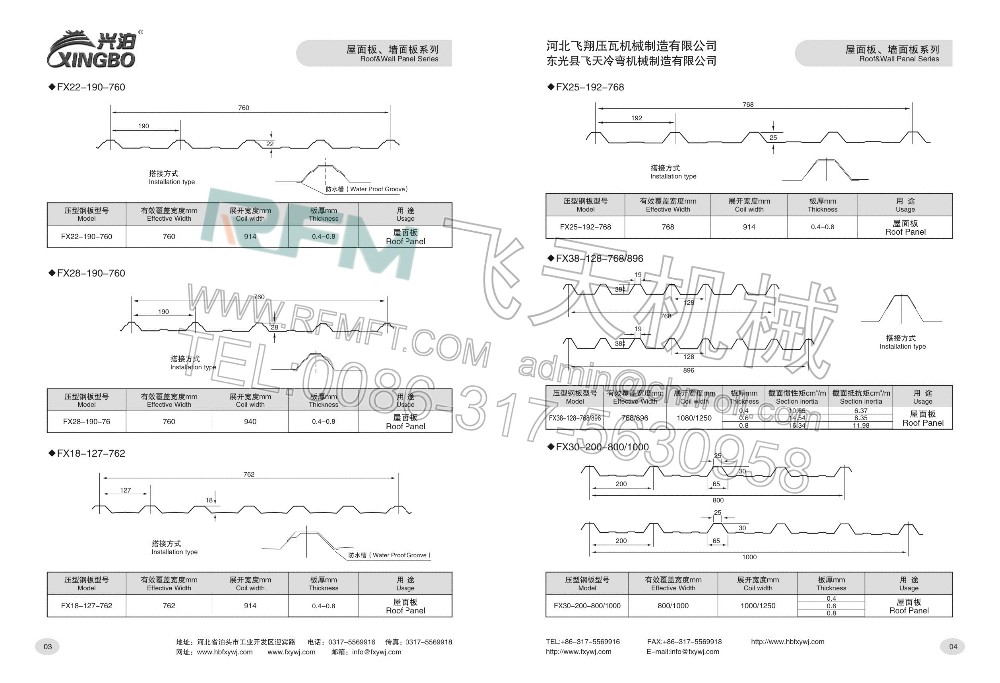

Feixiang feitian Trapeze Metal Roll Forming Machine

Product Description



1.Processes and components

Processes: Man-made uncoiler—Roll forming machine—PLC system-Hydraulic system-BladeReceiving table

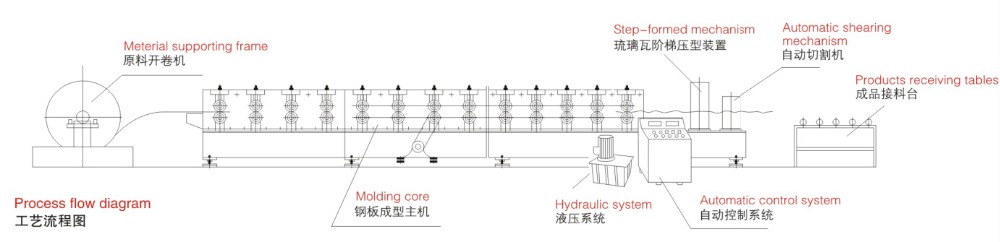

Flow chart:

roll forming machine (1)



Main technology:

1.

Raw Materil

PPGI,PPGL, GI,GL

2.

Thickness

0.3-0.8mm

3.

Uncoiler

5 Tons Manual Uncoiler

4.

Roller Station

11 Steps

5.

Shaft Material

70mm And No.45 Steel

6.

Roller Material

No.45 Steel

7.

Transport

Chain Transport

8.

Forming Speed

8-12m/min

9.

Motor Power

3KW

10.

Voltage

380V 50HZ 3Phase

11.

Cutting System

Hydraulic Cutting

12.

Control System

Detal PLC

ptional Choice



 1.

Electric Uncoiler/Hydraulic Uncoiler

2.

Robstic Structure

3.

Automatic Stacker

4.

Logo Punching Machine

5.

Safety Cover



Detailed Images

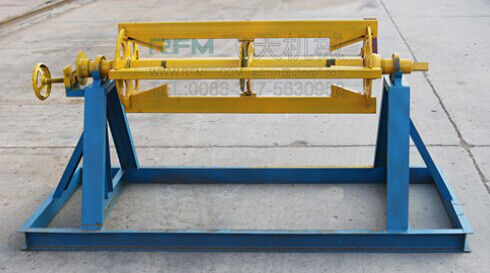

 Manual Decoiler




   1.

Material Coil Inner Diameter 450-550mm

   2.

Max Material Coil Outer Diameter 1500mm

   3.

Max Raw Material Width 1250mm

   4.

Loading Capacity 5 Tons



♦ Frame




     Structure

Middle Plate Welded

     Material

H Steel



 Feeding Table




   1

Leveling And Straightening Rollers

   2

Raw Material Feeding Location Slot (Adjustable)

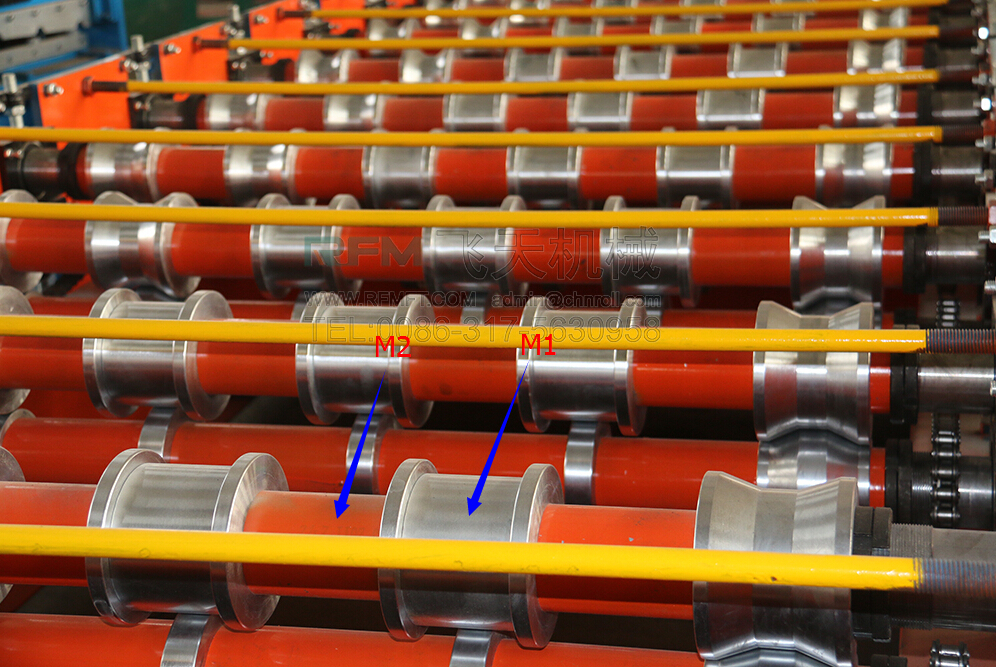

♦ Roller / Shaft




   M1

Material No.45 Steel With Chrome Coating

   M1

With Heat Treatment

   M1

Between Two Rollers Have Spacer Bush

M2

Material No.45 Steel

M2

70mm Diameter

M2

With Heat Treatment

M2

Between Rollers And Shaft Have Locking Washers And Nuts

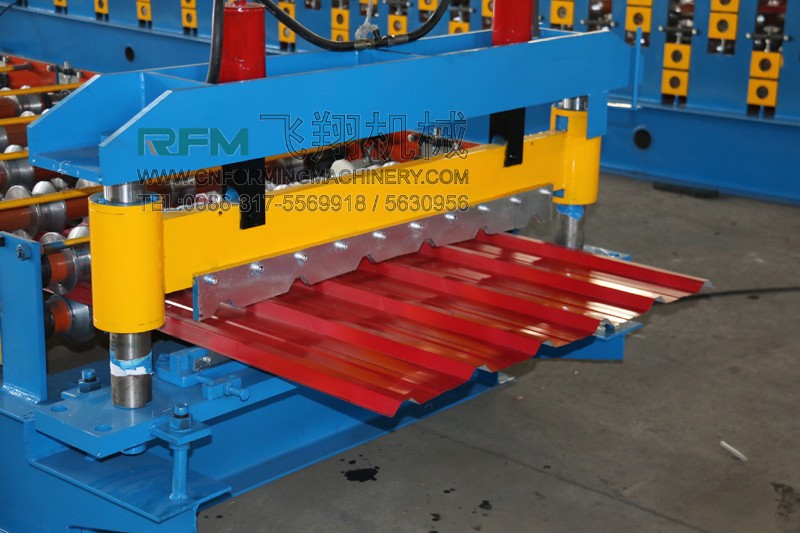

♦ Cutting System

1 (6)



   1.

Hydraulic Automatic Cutting

   2.

Blade Material Cr 12 With Quenched

   3.

No Burring And Painting Damage

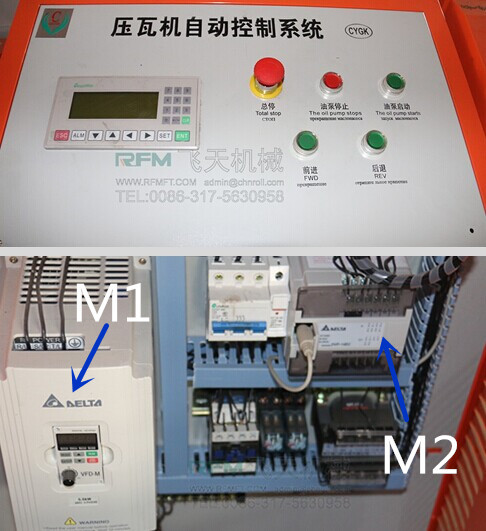

♦ Comtrol System




   M1

Transducer

   M2

PLC System

   M3

Control Whole Line Forming Speed

   M3

Control Oil Pump



Certifications





Company Information

roll forming machine

  2



Packaging & Shipping

Main machine: all rollers will be brushed unti-rusty oil, and packed with waterproof plastic film
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film
All parts inside container will be fixed very well which can keep safety and fixed for long time sea transportation

_2016-09-05 03_57_34.080

Packing  show

Our Services

1.  Professional mechanical background sales for better undestanding customer's need

2.  Experienced in China machine industry for supplying comprehensive machines and equipments

3.  Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer

4.  Engineers available to service machine overseas, for example installation, training, etc

5.  Lifelong service for spares, ware parts, technical supporting, etc

after-service



Contact me Bunny
