Quick Details

  • Type: Steel Frame & Purlin Machine
  • Condition: New
  • Work Pressure: 235---550Mpa
  • Production Capacity: 20---40m per minute
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: FT
  • Model Number: FT-LGJ
  • Voltage: 380V,50Hz,three phrases; customized
  • Power(W): 5.5kw+4kw
  • Dimension(L*W*H): 5.1*0.8*1.5m
  • Weight: about 2200kgs
  • Certification: CE; ISO9001:2008
  • Warranty: 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • product name: Light Gauge Steel Framing Cold Roll Forming Machine
  • machine type: individual arch plate
  • transmisstion type: gear transmisstion
  • machine speed: normal: 25m/min; higher: 40---60m/min
  • machine color: shiny blue; gery; milk white; customized
  • machine control system: Fully auto PLC controlling
  • PLC brand: DELTA;SIEMENS;SCHNEIDER; CUSTOMIZED
  • Screen type: touching screen; text screen
  • spare parts: relative tools
  • tolerance: +/-0.1mm

Packaging & Delivery

Packaging Details: Main machine: all rollers will be brushed unti-rusty oil, and packed with waterproof plastic film
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film
All parts inside container will be fixed very well which can keep safety and fixed for long time sea transportation
Delivery Detail: 40 working days after receiving advance payment

Light Gauge Steel Framing Cold Roll Forming Machine


Product Description


Summary of stud and track keel forming machine

  1). To  design and make  the best roll forming machine,  we took   EUROPEAN  quality standard;

  2). Choose the best material and components, and adopting our  1 7 + years experience ;

  3).   We   achieves that the machine capacity is double of the competitors;

  4). The machine  working speed can be 60m/min ;

  5).  Very easy  to  install and  operate  the  roll forming machine.

Machine working flow of stud and track forming machine:

Machine Technical Specifications of stud and track forming machine:

About raw material and product for roll forming machine



Material &product

Feeding width

according to profile

Effective width

according to profile

Raw  material

galvanized steel strip

T hickness

0.3-0.7 mm

Yield strength

280-350 MPA



How to load the material??→Decoiler





Manual decoiler

Inner diameter:450-550mm

Expand by band

Outer diameter:1500mm

Max Coil width :30 0mm

Capacity: 1.5T

Decoiler dimension:1.5 *1.5*1.5m

Decoiler weight:355KGS

Quantity: 1set

Usage: It is used to support the steel coil and uncoil it in a turntable way.

         Passive uncoil pulled by roll forming system



What the main forming machine will be???→as below

Main Forming machine

Forming steps

12 steps

Shaft diameter

50mm

Machine stand

Individual Arch Plate

Machine frame

steel plate welded

roller material

Cr12

shaft material

45# steel with quenching and tempering

Work speed

standard: 20---25m/min; 45---60m/min

Transport

By gear

Power of main machine

4kw

Voltage

380V-50HZ-3P(as required)

Machine dimension

5.5*0.8*1.5m

Machine weight

About 2.5T

Machine color

Yellow and blue(as required)

Usage: In order to keep the product shape and precision, adopts welded sheet structure,

         motor reducer drive, chain transmission,roller was chromed which can keep the

         molding plate surface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.



Product Pictures





































































Our Customers


We do together , dear customers !

Meeting you, growing with you, enjoying with you, supporting you!

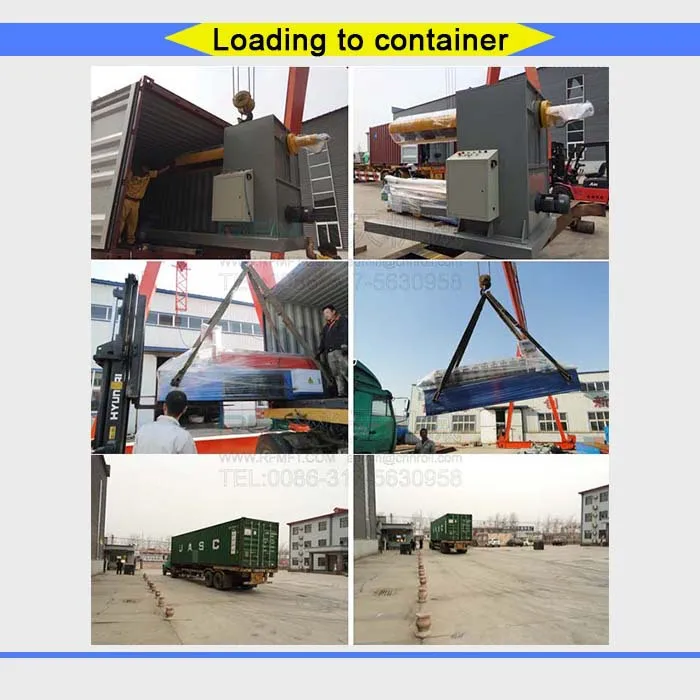

Shipment

Package

Main machine: all rollers will be brushed unti-rusty oil, and packed with waterproof plastic film
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film
All parts inside container will be fixed very well which can keep safety and fixed for long time sea transportation
